Piecing It Together / Wk 8 / 3D Puzzle

GROUP
Jennifer Tis
Anne-Michelle Gallero

………

IDEA
To create a 3D maze in the shape of a tree on either the 3D printer or on a wood panel using the CNC machine.



………

INSPIRATION

WOODEN MAZE ON WESTWORLD

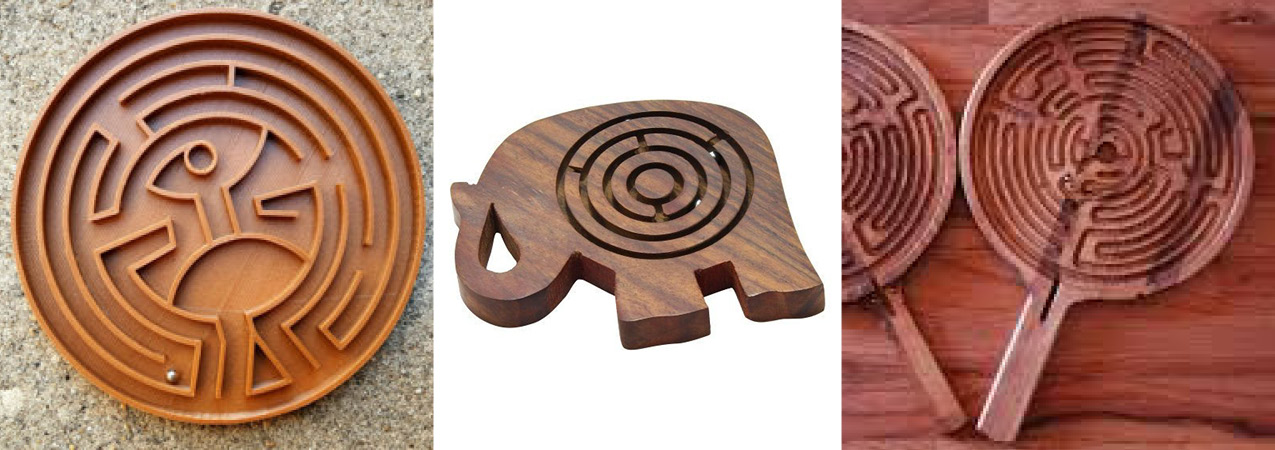

MORE EXAMPLES OF WOODEN PUZZLES

………

PROCESS
1. After collecting some photos and links of 3d mazes and puzzles that we liked, we decided to continue with the maze idea as either a 3D printer object or using the CNC machine after seeing some examples of wooden mazes online.

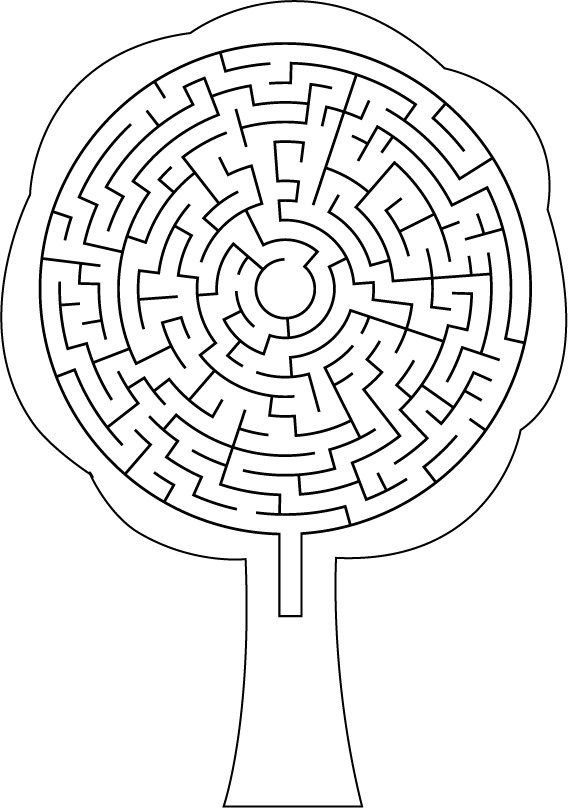

2. Created a maze from a puzzle  generator online: mazegenerator

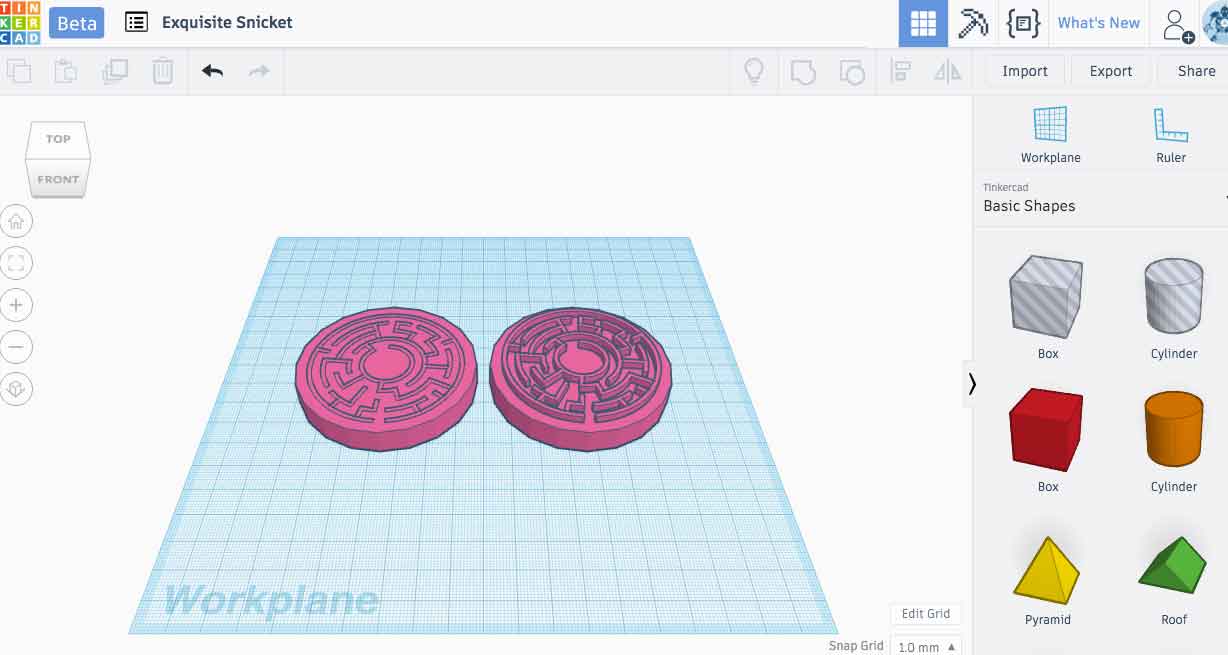

3. Started building the 3D version in Tinkercad and figured out that we could build the object in Illustrator and then import it in Tinkercad as a SVG file.

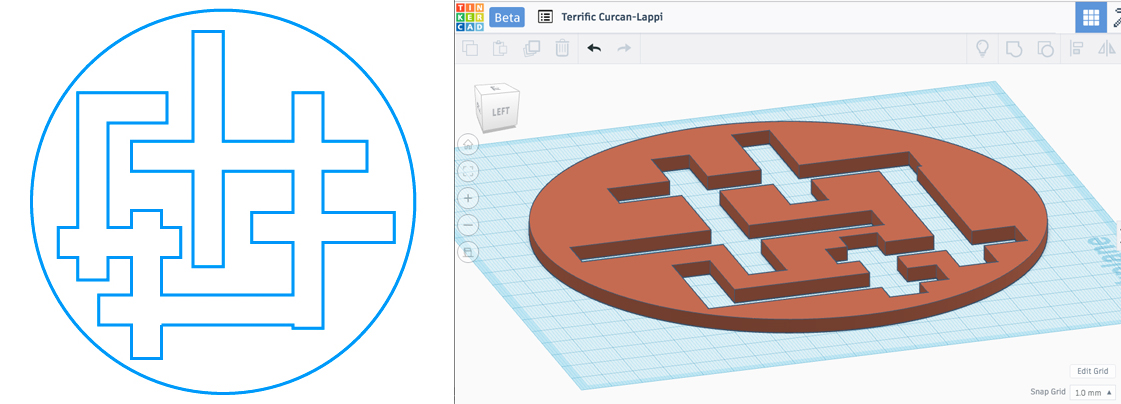

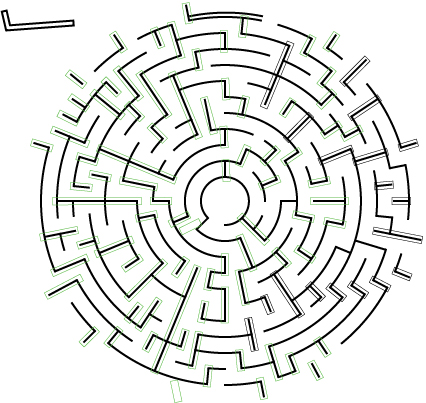

4. Initially, we were having problems importing the file because Tinkercad would disregard the complex shapes with grooves and simplify it into a filled-in piece. We needed to create the twists and turns of the shape as an object instead of a stroke. Attempted to rebuilt the maze from scratch in Illustrator to turn all the lines into a combined object (and not just lines).


5. Needed to find a simpler and faster solution of taking the stroke and turning it into an object… and after doing a google search, discovered “EXPAND.”  By applying the “EXPAND” feature in Illustrator, it turns the stroke into an object.

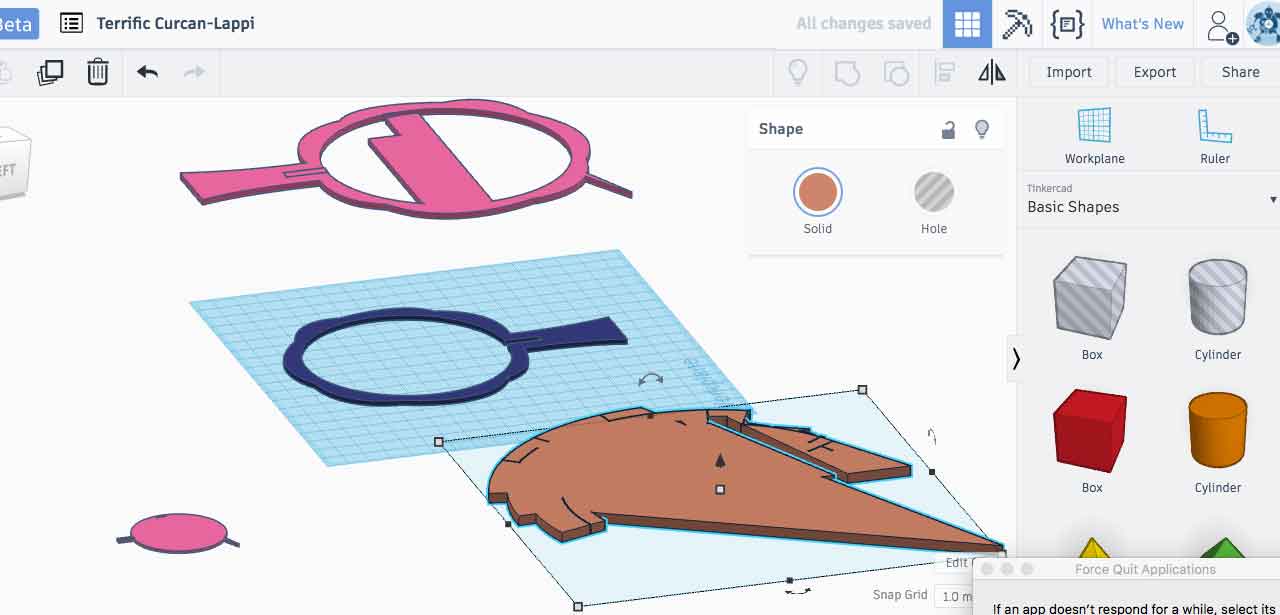

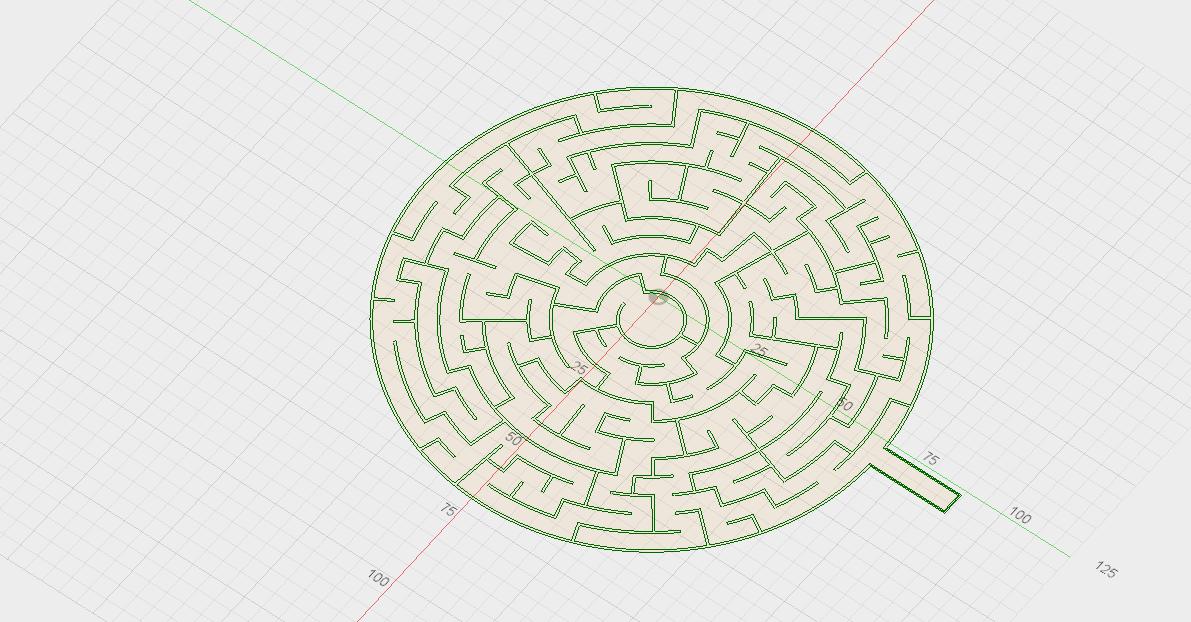

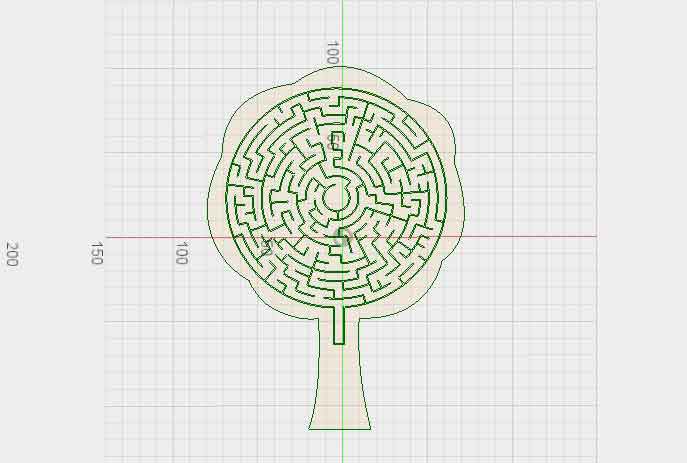

6. Importing the new SVG file into Tinkercad: The Tinkercad program still filed in the shape as a solid piece, so opened the SVF file in Fusion 360 and it maintained it’s original shape in there.

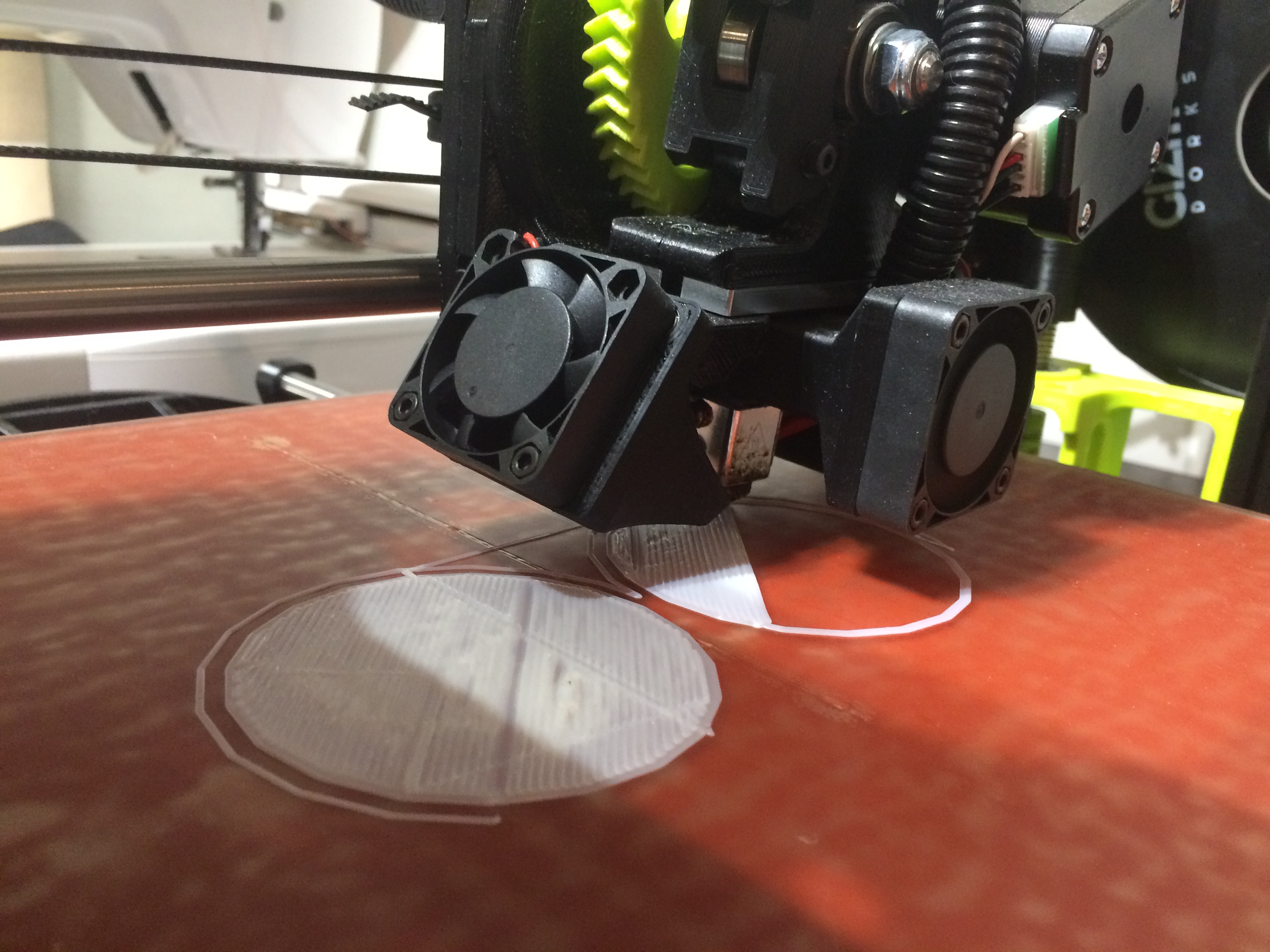

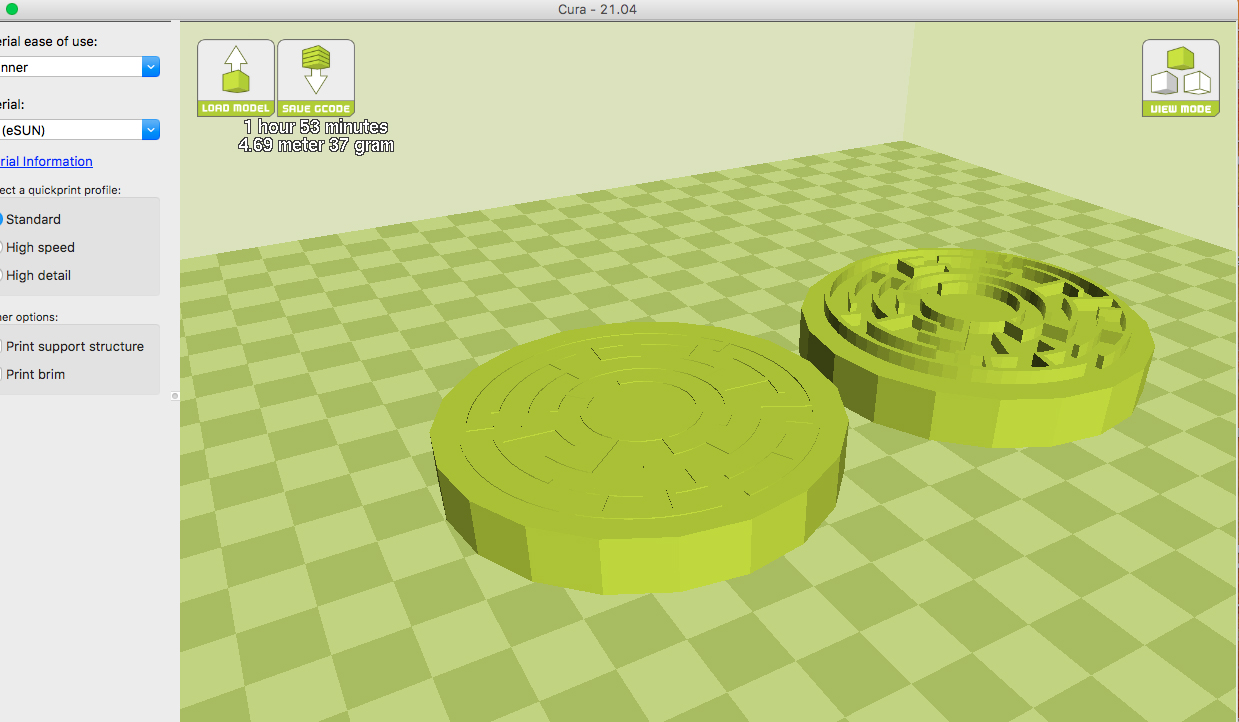

7. Next step will be to prototype and test the design on a 3D Printer.
